1 ton low headroom electric chain hoist for sale
31 Jul 0

Electric Chain Hoist: 1 ton low headroom chain hoist with trolley

What does the headroom really mean?

Headroom is the space from the point on the hook where the load will be hanging to the point where the hoist, or hoist and trolley, connects with the support member the hoist hangs from.
Often can be an I-beam such as a horizontal building support or some kind of crane such as a jib crane or gantry crane.

1 ton chain hoist for sale to Serbia:

1 ton low headroom electric chain hoist for sale

1 ton low headroom electric chain hoist for sale

  • Product: Low headroom electric chain hoist with trolley
  • Lifting capacity: 1 ton
  • Lifting height: 6m
  • Hoist traveling speed: 11m/min
  • Lifting speed: 6.6m/min
  • Working class: M4 FC=25%
  • Chain diameter: 7.1mm
  • Chain material: G80
  • Power supply: 3Phase/380V/50Hz
  • Control voltage: 36V
  • Lifting power: 1.5KW
  • Control method: Remote control

Low headroom chain hoist features:

  • Low profile design for applications where a constricted space requires reduced headroom.
  • FEC G80 ultra heat-treated alloy steel chain which is suitable for rain, sea water and chemical environments.
  • Housing is stamping steel structure, light and strong.
  • High strength safety hook, it will not break by accidental overload or impact, it will only be out of shape gradually.
  • With molding chain bag, light, beautiful and durable.
  • Choices of lug mounted push/pull, hand geared or motorized trolley drives geared limit switches for both upper and lower hook travel.
  • Limit switch: the condole hang has limit fast closing device, the machine automatically stop, prevent the chain beyond of certain range to ensure safety.
  • Inverse phase protection: special wire device, when the power supply wiring error occurred, the control circuit can’t move.
  • Standard voltage is 200-460 Volt, single or three Phase.
  • Lifting capacity from 1 ton through 10 tons.
  • Direct acting motor brakes.
  • Light high efficiency motor, low energy consumption, non-asbestos brake system.
low headroom trolley hoist

low headroom trolley hoist

Options:

  • Special voltages are available on request.
  • Custom lift lengths are available on request for load chain, pendant cord and power cord.
  • Lifting Speeds: Single or Dual Lifting Speeds.
  • Radio remote control.
  • Variable speed control.
  • Steel chain container.

Why customers choose Dongqi electric chain hoist:

  • Compact structure, light weight, small wheel load, the best use of space.
  • Accurate positioning, running high efficiency, improving production efficiency.
  • Safe and reliable, operation monitoring, easy maintenance.
  • Modular design, more options, meeting customer’s special needs.
electric chain hoist with trolley

electric chain hoist with trolley

How to order:

When specifying a low headroom chain hoist, the following parameters should be considered.

  • Load weight to be lifted.
  • Lifting height you required.
  • Power supply available.
  • Materials to be lifted.
  • Operating environment (moisture, corrosive or explosive vapors, temperature, etc.).
  • Trolley type (fixed, hand-geared or motorized).

If need more info or request a quote to our chain hoist, welcome to contact us.

hoistmachine
, , ,
Featured Hoists News
large capacity hand chain hoists for sale
4 Jun 0

Manual hoists for sale: 10 ton hand chain hoists for New Zealand

This is an old customer in New Zealand, Europe. Mr. Paul is in the machining industry. He has purchased portable gantry crane, wall mounted jib crane already. This is the third time he choose us for chain hoists supply, and he need 20 units of manual chain hoists to apply in his workshop for maintenance.

What is a manual chain hoist?

Manual chain hoist is an economical, high quality, rugged chain hoist, can be separated in three different part categories: lifting chains, lifting mechanism and hooks. Designed with fewer parts to assure long life and minimal maintenance, this hand chain hoist can be used to lift loads in numerous industrial, construction and commercial applications.

manual chain hoist design drawing

manual chain hoist design drawing

Manual chain hoist for sale:

  • Lifting capacity: 10 ton
  • Lifting height: 3m
  • Working class: A3

More options for your choice:

manual hoists for sale

manual hoists for sale

Why customers choose hand chain hoist?

  • Excellent performance and easy maintenance combined with small volume and light weight construction makes this chain hoist a preferred tool.
  • Our manual chain hoists are specially designed to lift, pull and drag loads in heavy duty construction and industrial areas.
  • Both in confined spaces and in the open air.
  • Only grade 80 high quality heat treated steel load chain is used to ensure reliable operation and long life service.
  • Chain hoists comes complete with hand chain, load chain, safety hooks top and bottom, durable finish and a certificate of load testing.
  • Dongqi Hand Chain Hoists combine a rugged exterior shell with machined interior components to handle your most demanding lifting operations.
  • An efficient drive train minimizes manual effort, while a double enclosed brake cover, standard slip clutch and double pawl springs enhance performance and reliability.

How does a manual chain hoist work?

  • Chain hoist uses a mechanical advantage to transform small force over a long distance to large force over a short distance, this is possible by using multiple larger and smaller gears in the chain hoist mechanism.
  • To lift a load, chain hoist operator needs to pull down the hand chain, this turns the cog and axle which goes trough the lifting mechanism.
  • Inside the lifting mechanism are multiple gears which increase the mechanical work applied when pulling the hand chain for dozen times using gear ratio, allowing to easily lift loads with multiple ton capacity.
  • So when the hand chain is pulled, the cog which is rotated by the hand chain turns the drive shaft and gears which turn the load chain sprocket, this also rotates the load chain that is looped over the load chain sprocket and lifts a load.
  • At the end of the lifting chain is a grab hook, which allows to easily attach and detach a load.
  • Also, most chain hoist lifting mechanisms have a ratchet or braking system that prevents the load from slipping back, but allows to lower a load by pulling the other side of the hand chain.
large capacity hand chain hoists for sale

large capacity hand chain hoists for sale

Advantages for using manual chain hoists for lifting:

  • Don’t need electricity, oil or other additional resources to work.
  • Cheaper than electric or hydraulic hoists.
  • Simple to use and easy to repair and maintain.

Manual chain blocks lift loads to new heights!

Chain blocks are a manual hoist that is very flexible and efficient, can meet a great solution for manual handling and lifting requirements, including applications within the assembly line, at a workstation, job site or workshop, also used in rigging, maintenance, construction, automotive, general manufacturing, mining, and oil applications.

Require further information? Contact us today or continue browsing our wide range of lifting equipment.

hoistmachine
, , ,
Featured Hoists News
1 ton manual trolley chain hoist for sale
22 Oct 0

1 Ton Electric Chain Hoist with Trolley for Sale to Canada

Manual hoist trolleys are an economical way to mobilize your electric chain hoist and allow you to move loads through your business quickly and easily.

1 ton manual trolley chain hoist for sale

                                                   1 ton manual trolley chain hoist for sale

Chain hoist with trolley for Canada customer:

  • Lifting capacity: 1000kg
  • Lifting height: 23.6m
  • Lifting speed: 4.9m/min
  • Traveling speed: Manual
  • Power supply: 220V/60Hz/single phase
  • Working class: M3

Why choose Dongqi manual trolley chain hoist:

  • The electric chain hoist & Manual trolley kit is rugged, portable, and provides quick and precise lifting of goods. The kit includes an electric chain hoist with manual trolley, chain container and a button pendant.
  • Manual trolley chain hoist use a push/pull trolley, a plain trolley is the simplest form of trolley available. The chain hoist will hang from this trolley by either a hook or lug mount. A plain trolley will move the chain hoist along the Beam by human power via the hoist operator. The operator will grab either the hook or the item being lifted and pull or push the item to move it in the desired direction along the Beam.
electric hoist & manual trolley

                                                           electric hoist & manual trolley

  • These hoist and trolley kits are designed to work with mobile gantry cranes. This heavy-duty equipment is constructed from tough but lightweight die-cast aluminum housing. Its durability allows it to work in harsh conditions like battery rooms, foundries, or raw material production facilities.
  • Heat-treated, alloy steel gears and an overload-limiting clutch give the oil-bath transmission a smooth and reliable operation. The standard pushbutton station fits comfortably in one hand. Lifting heavy loads is simple, ergonomic, and reliable with a hoist and trolley kit.

How to select the right chain hoist – Dongqi Hoists

Manual and electric chain hoists are used for a variety of lifting solutions. The suggestion below is going to help simplify which hoist will work best for your application.

Electric Chain Hoist with Manual Trolley

                                                    Electric Chain Hoist with Manual Trolley

  • Capacity: First need to know the weight of the materials you are picking up, to ensure a safe pick and proper functioning of your new chain hoist.
  • Lift: We need to determine the amount of lift your application requires. If in doubt, please always add a few meters of lift to be safe.
  • Speed: The speed in which you lift items will be dependent upon a multitude of factors: what materials will be lifted? What is the surrounding environment like? But the primary factor is safety. Need expert advice? Call us Wechat/Whatsapp: +86 150 3617 7583.
  • Power source: We have single phase and three phase power for your choice. Larger factories and industrial workplaces will usually be running on three phase power.
  • Trolley type: A trolley is a device that rests and rolls along the beam your chain hoist will operate from. We have 3 common types of trolleys to you: manual chain hoist trolley, also known as a push/pull trolley, geared chain hoist trolley and motorized chain hoist trolley.

To determine a safe trolley chain hoist for your lifting application, contact a professional: issing@cranedq.com.

hoistmachine
, ,
Hoist Machine Blog
Dongqi Hoists invite customers to Canton Fair
25 Sep 0

The 126th Canton Fair Invitation Letter

Dear Sir/Madam,

This is HENAN DONGQI MACHINERY CO., LTD, known as DQCRANES. We will participate in the 126th China Import and Export Fair, known as the 126th Canton Fair in Guangzhou, China.

Dongqi Hoists invite customers to Canton Fair

                                                Canton Fair Invitation from Dongqi Hoists

We’d like to invite you to come and visit our booth. Information below:

  • Exhibition Name: The 126th Canton Fair
  • Booth number: Hall 8.0 L05
  • Date: 15th~19th October, 2019
  • Address: 380 Yuejiang Middle Rd, Haizhu Qu, Guangzhou, China
  • Company: HENAN DONGQI MACHINERY CO., LTD
  • Website: www.hoistmachine.com

As a professional hoisting equipment manufacturer, Dongqi has offered various type of hoists to different industries, include Chain hoists, Manual hoist, Wire rope electric hoists, European type electric hoists, Explosion proof electric hoists, Metallurgical electric hoist, and Mini electric hoists, etc. Customized electric hoists are available, which are the optimal solution to your material handling problems.

It would be a great pleasure to meet you at the exhibition, sincerely looking forward to establishing a long term and good business relationship with you and your company in the near future. We will be here and waiting for you.

Sincerely Regards,
Dongqi Hoists

Web: www.hoistmachine.com
Email: issing@cranedq.com
Wechat/WhatsApp: +86 150 3617 7583

hoistmachine
, ,
Featured Hoists News
Wire rope hoist and electric chain hoist
22 Aug 0

How to Choose the Right Electric Hoist for Your Lifting Solutions？

Electric chain hoists are used in manufacturing, maintenance and in distribution to transport materials. Chain hoists are available with top hook suspensions, hand push trolleys and motor driven trolleys. Dongqi Hoist Machine can offer you with a variety of chain hoist models and options to choose from.

Electric Chain Hoist or Wire Rope Hoist?

  • Electricity is almost universally available and inexpensive.
  • Productivity, ergonomics, and safety are enhanced.
  • They are normally smaller and more compact than wire rope hoists, as a drum is not required to store wire rope.
  • Overload clutch to prevent dangerous overloads is normally standard.
  • Portability is excellent as standard hook mounting allows simplified installation (Lug mount required on wire rope hoist to wrap rope on drum precisely).
  • Lift can be changed at any time with minimal cost by simply changing chain length.
  • Numerous configurations and speeds are available in lighter capacities.
  • Chain tends to be a more durable lifting medium than wire rope.
  • Headroom of chain hoists is often better.
  • Chain hoists are normally less expensive than wire rope.
Wire rope hoist and electric chain hoist

Electric Chain Hoist and Wire Rope Hoist

Manual Chain Hoist or Electric Chain Hoist?

  • When workstations require a chain hoist lifting system, there are two primary categories of hoists that purchasers can choose from–manual chain hoists and electric chain hoists.
  • Manual chain hoists typically serve maintenance applications and other light duty service assignments. Manual chain hoists range from 100KG capacity to 32 tons. For tight spaces and light duty applications, manual lever pullers serve as a compact, lightweight alternative to manual chain hoists.
  • Electric chain hoists serve light capacity applications that require more repetitive lifting. They typically are used with jib cranes, monorails and workstations. Electric chain hoists are available in a variety of speeds, from single speed for lower duty pick and place operations, to two-speed for greater control, on up to inverter controls that offer smooth operation along a wide range of variable speeds.
  • Electric chain hoists with variable frequency drives provide smooth starts and stops of the trolley and hoist motions, which reduces wear and mechanical stress by minimizing load sway. The wider range of speed control also permits more accurate and precise load positioning.
Manual Chain Hoist and Electric Chain Hoist

Manual Chain Hoist and Electric Chain Hoist

How to Select Your Right Chain Hoist:

  • Capacity: You need to know the maximum weights of the loads you intend to lift.
  • Lift: You need to determine the amount of chain lift (or length of chain) for your hoist.
  • Lifting Speed: The load being lifted, if the load fragile, the surrounding environment, and hazardous conditions or environments, and is there adequate spacing around to pick and place the loads safely.
  • Voltage & Power: You need to determine the voltage of your power source. By choosing the wrong voltage can instantly damage your new hoist, not covered by warranty.
  • Pendant Control Cable Length: Special lengths for pendant cable drop can be configured to meet specific needs as well.
  • Trolley:
  • Plain Trolley: A plain/push is operated by maneuvering the trolley along the Beam by human power via the hoist operator. The operator will grab either the hook or the item being lifted and pull or push the item to move it in the desired direction along the Beam.
  • Geared Trolley: A geared trolley is used by pulling a chain hanging from the trolley to maneuver the hoist along the beam or track. A geared trolley operated by pulling the hand chain.
  • Motorized Trolley: The motorized trolley option has motor attached to the side of the trolley wheels, and usually has its own control pendant. A trolley speed must be specified when ordering a motorized trolley.
  • I Beam Flange Width: I-Beam: An I-beam, also known as H-beam, W-beam or WF-beam (for “wide flange”), is a beam with an I- or H-shaped cross-section.
chain hoist selection guide

Electric chain hoists selection guide

How to Buy Electric Chain Hoist?

Items to consider when selecting a chain hoist:

  • Type: Fixed type or manual trolley or electric trolley?
  • Lifting capacity: ? ton
  • Power supply: 220V-440V, 50/60Hz, single or three-phase? (Customized)
  • Lifting height: ? m
  • Lifting speed: ? m/min
  • Application: What materials to be lifted?

If you’re not certain what types of chain hoists are best for your applications, contact us now to discuss your requirement.

hoistmachine
, ,
Hoist Machine Blog
3 ton fixed chain hoist for sale
12 Jul 0

3 Ton Fixed Suspension Electric Chain Hoist for Italy

Dongqi 3 ton fixed suspension chain hoist for sale with high quality for various professional applications. Chain hoist convinces through the compact, elegant design, light weight, robust construction and technical innovation. Thus Dongqi electric chain hoist is highly efficient and engineered for a long working life.

Why Choose Fixed Type Chain Hoist:

  • Integrated Motor & Drive Unit for compact dimensions.
  • High capacity Brake for enhanced reliability and increased life.
  • Gear Unit with case hardened ground helical gear with slipping clutch.
  • Standard design of two speed hoist, customized solutions with the single speed are available.
  • Dust and moisture protected as per IP55.
  • Mechanical over load protection.
  • Powder coated exteriors for superior durability.
  • Easy availability of spares for standardized electrical components.
  • Proven and dependable Electrical Technology.
  • Superior quality lifting chain.
  • Durable, ergonomically designed wired control station.
  • Standardized hoists are available off-the-shelf ready to use.
3 ton fixed chain hoist for sale

                                                        Fixed suspension electric chain hoist

3 Ton Electric Chain Hoist Specification:

3 ton fixed suspension chain hoist for sale, reliable and easy to maintain in many applications. Dongqi chain hoists are commonly suspended from beams via a hook or trolley.

  • Type: Fixed chain hoist
  • Loading capacity: 3 ton
  • Lifting height: 4m
  • Lifting speed: 5.4 m/min (Customized)
  • Power supply: 220V, 50Hz, 3Phase
  • Chain Specification: Ø11.2
  • Test Load: 3.75 ton
  • Country: Italy

Features and Benifits of Chain Hoists:

  • Electricity is almost universally available and inexpensive.
  • Productivity, ergonomics, and safety are enhanced.
  • Chain Hoists are normally smaller and more compact than wire rope hoists, as a drum is not required to store wire rope.
  • Overload clutch to prevent dangerous overloads is normally standard.
  • Portability is excellent as standard hook mounting allows simplified installation (Lug mount required on wire rope hoist to wrap rope on drum precisely).
  • Lift can be changed at any time with minimal cost by simply changing chain length.
  • Numerous configurations and speeds are available in lighter capacities.
  • Chain tends to be a more durable lifting medium than wire rope.
  • Headroom of chain hoists is often better.
  • Electric chain hoists are normally less expensive than wire rope.
  • Most chain hoist duty cycles are equal to wire rope.

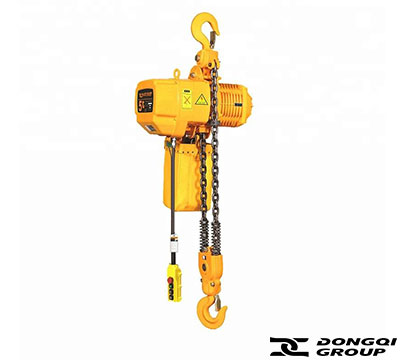

3 ton fixed suspension chain hoist for sale

                                                3 ton fixed suspension chain hoist for sale

How a Fixed Chain Hoist Works:

Lifting, pull shift, handling heavy loads, tanks flip chip bonding.

such as:

  • Installation and removal of various medium-sized concrete, steel, and machinery and equipment for construction and installation companies.
  • Civil construction and bridge construction factories, mines, electricity, shipbuilding, automobile manufacturing.
  • Highways, bridges, metallurgical, mining, slope tunnels, wells and other infrastructure construction management protection of machinery and equipment.
Electric chain hoist for sale

                                                              Electric chain hoist for sale

Why Choose Dongqi Electric Chain Hoists:

  • Best selection of electric chain hoists from all major manufacturers insures that you will get the best hoist for your application.
  • Most complete inventory available insures that you get quick delivery of the hoist you need.
  • Most competitive price.
  • Best technical and application advice to insure that your electric chain hoist purchase will meet your need.
  • Quick shipments time and Best after sale service.

Get your custom electric chain hoist Now! CALL for FREE +86 150 3617 7583, Email: issing@cranedq.com.

hoistmachine
, ,
Featured Hoists News
10 Ton Electric Chain Hoist with Trolley for Sale
1 Jul 0

10 Ton Electric Chain Hoist with Trolley for Sale to Argentina

Electric chain hoist for sale to Argentina, which includes motorized trolley, chain container and six button pendant. Trolley of electric chain hoist is equipped with wrap-around side plates that act as bumpers to protect trolley wheels. Trolley wheels are machined and heat-treated with sealed, lifetime-lubricated ball bearings for extended product life.

Chain Hoist with Trolley for Sale to Argentina:

  • Lifting capacity: 10 ton
  • Voltage: 380V/50Hz/Phase
  • Lifting height: 5m
  • Trolley: IP55
  • Pendant: IP65
  • Pendants: 4-button (momentary contacts) with emergency On/Off (maintained contacts)
  • Chain turns: 4

The above is customized specification for our customers, special request can be accepted.

10 Ton Electric Chain Hoist with Trolley for Sale

10 Ton Electric Chain Hoist with Trolley for Sale

The rated capacity of electric chain hoist with trolley is under 32 tons. Electric chain hoists have compact structure, advanced transmission device, long service life, high efficiency, lower noise and high quality. Welcome to contact Dongqi to get your custom electric hoist now.

Why Choose Dongqi Electric Chain Hoists:

  • Compact structure, light weight, small wheel load, the best use of space.
  • Accurate positioning, running high efficiency, improving production efficiency.
  • Safe and reliable, operation monitoring, easy maintenance.
  • Modular design, more options, meeting customer’s requirement.
  • Save running cost, green energy-saving.
  • Selecting high quality components, safe and reliable, durable.

Lift Almost Anywhere:

  • You can use these electric chain hoists on an overhead crane, a workstation crane, or with a jib crane.
  • Dongqi electric chain hoist also widely used for machine shops, printing companies, injection molding applications, equipment service companies, etc.
  • And applied for construction, paper converting, steel fabrication, foundries, concrete plants, electronic manufacturing, glass companies, and wood mills.

Dongqi Electric Chain Hoist Price:

Dongqi electric hoist manufacturer can provide complete solution, customized design. Free quotation and drawing for all your needs, get electric chain hoist price now!

When selecting an electric chain lifting hoist, you need to determine the following items:

  • Lifting capacity;
  • Lifting height;
  • Voltage or power supply (single phase or 3-phase hoist);
  • The suspension (hook, geared trolley, motorized trolley);
  • The pendant control length (length of push button controller);
  • The application (what materials to be lifted).
10 ton electric chain hoist for sale

10 ton electric chain hoist for sale

Custom Chain Hoists Service:

Dongqi Cranes can provide custom chain hoists to resellers, end users, technicians, as well as crane builders.

  • Standard electric chain hoists.
  • Air hoists for subsea environments.
  • Explosion proof electric hoists for oil and gas and coal.
  • Stainless steel hoists for the food, medical and semiconductor industries.
  • High speed electric chain hoists.
  • Dual speed chain hoists.
  • Heavy duty applications electric chain hoists.
  • PLC controlled hoists.
  • Radio controlled hoists.
  • Low headroom electric chain hoists.

For more information on hoists custom capabilities, add Wechat/Whatsapp: +8615036177583 to get the professional service.

hoistmachine
,
Featured Hoists News
2 ton low headroom electric chain hoist for sale
19 Jun 0

2 Ton Low Headroom Electric Chain Hoist for UAE Customer

Dongqi 2 ton low headroom electric chain hoist for sale is designed for those applications where space is limited. Low headroom chain hoist is a typical structure in shortening the distance between the machine body and the beam tracks, applicable to operations inside fairy low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the building is required.

2 ton low headroom electric chain hoist for sale

                                              2 ton low headroom electric chain hoist for sale

Low Headroom Chain Hoist Structure Features:

  • FEC G80 ultra heat-treated alloy steel chain which is suitable for rain, sea water and chemical environments.
  • Housing is stamping steel structure, light and strong.
  • High strength safety hook, it will not break by accidental overload or impact, it will only be out of shape gradually.
  • With molding chain bag, light, beautiful and durable.
  • Choices of lug mounted push/pull, hand geared or motorized trolley drives geared limit switches for both upper and lower hook travel.
  • Limit switch: the condole hang has limit fast closing device, the machine automatically stop, prevent the chain beyond of certain range to ensure safety.
  • Inverse phase protection: special wire device, when the power supply wiring error occurred, the control circuit can’t move.
  • Standard voltage is 200-460 Volt, 3 Phase.
  • Lifting capacity from 1 ton through 10 tons.
  • Direct acting motor brakes.
  • Light high efficiency motor, low energy consumption, non-asbestos brake system.

Electric Hoist for Sale to UAE Customer:

  • Type: Low headroom electric chain hoist
  • Lifting capacity: 2 ton
  • Lifting height: 4m
  • Power supply: 220V/3 Phase/50 HZ
  • Suspension: Motorized trolley
  • Working Class: M3
2 Ton Low Headroom Electric Chain Hoist for UAE Customer

                                         2 Ton Low Headroom Electric Chain Hoist for UAE

Why Customers Choose Dongqi Chain Hoist:

  • Ultra low headroom.
  • Increased safety and position accuracy with the pioneering frequency inverter technology or with 24-V contactor control.
  • Smooth and silent operation.
  • Acceleration and stop time of trolley are adjustable.
  • Extremely maintenance-friendly.

2 Ton Electric Chain Hoist for Sale Advantages:

  • Compact structure, light weight, small wheel load, the best use of space.
  • Accurate positioning, running high efficiency, improving production efficiency.
  • Safe and reliable, operation monitoring, easy maintenance.
  • Modular design, more options, meeting customer’s special needs.

Dongqi Electric Chain Hoist Price:

Dongqi offers a complete line of electric lifting hoists for different industries. Low headroom chain hoists are specially engineered frame combines hoist and trolley for low headroom application. Available in capacities of low head room electric chain hoist is 1-10 Ton. Other options are available on request. Contact us with your any question or inquiry.

Please send us a detailed inquire so we can provide our best quotation for your reference:

  • Lift capacity?
  • Lifting height?
  • Lifting speed: single speed or double speed?
  • Voltage and frequency? (380V/50HZ/3PH or others)
  • What materials to be lifted?
hoistmachine
, ,
Featured Hoists News
15 ton chain hoist with trolley for sale
27 May 0

15 Ton Electric Chain Hoist With Motorized Trolley for Sale

The high-performance electric hoist & motorized trolley is engineered for heavy-duty industrial service and is available in 0.5 ton to 32 ton capacities. Dongqi motorized trolley chain hoist includes the electric chain hoist with motorized trolley, chain container, and six button pendant.

15 ton electric chain hoist with trolley for sale

15 ton electric chain hoist with trolley

Electric Chain Hoist with Trolley for Sale to Singapore

  • Chain hoist with motorized trolley.
  • 15 ton lifting capacity.
  • 40 meters lifting height.
  • Standard emergency stop button on pendant control.
  • Reliable double-action electrical limit switch.
  • High precision mechanical brake.
  • Highly durable load chain.
  • Unique chain guide.
  • Tough, enduring motor.
  • Electro-magnetic brake with low power consumption.
  • Control switch voltage set at 24V/36V for safety.
  • Operating voltage 415V/3 Phase/50 HZ.
  • Pendent control, lightweight and durable with waterproof button switch.

Why Choose Dongqi Motorized Trolley Chain Hoist?

  • Motorized Trolley: Trolley is adjustable for a range of flange widths. Motor includes disc type brake. Side guide rollers are included to promote smooth trolley motion and to minimize wheel and beam wear. Wheels are dual tread design for operation on tapered or flat flange beams. Trolley motor includes class B insulation. Motor is rated 15-minute duty and includes standard thermal motor protection.
  • Dual Brake System: Disc type motor brake working with a mechanical load brake provides load lowering control. Electric brake is designed for easy access and simple adjustment.
  • Upper and Lower Limit Switch Prevents overwinding by stopping operation in the case of overlifting or overlowering.
  • Overload Alert: Installed as a load detecting safety device to help prevent overload for greater hoist longevity.
  • Push Button Control: Compact design to enable one-handed operation. Mushroom on/off button included. Push button cable has strain relief to prevent cable damage.
  • Electric Control Panel: Single speed hoists are re-connectable for 208-230-460 power supply. Available in Variable Frequency Drive (VFD) for all motions.
  • Heavy-Duty Hoist Motor: The hoist motor is a high torque design and is rated 30-minute duty. Class B motor insulation and standard thermal motor protection is included.
  • Load Sheave / Chain Guide: Full floating chain guide assures proper engagement of chain on load sheave. Features 4 or 5 pockets for better distribution of the load.
  • Load Chain: Grade 80 load chain is case hardened and has a high resistance to wear and corrosion. Longer lifts are available per requirement. Zinc galvanized load chain is available as an option.
  • Hooks: Load hook is a forged carbon steel hook with a heavy-duty hook latch. Thrust bearing in hook allows 360˚ rotation to prevent twisting of load chain. Top hook, for hook suspended hoists, is rigid.
  • Chain Container: Chain container is standard equipment and is either molded with thick polypropylene material or fabricated from steel to securely contain the chain and chain lubricant.
  • Optional containers are available for long lift applications.
  • Gear Box / Oil Lubrication: The gearbox utilizes an alloy steel helical and spur gear reduction. Gear inspection and lubrication is easily accessible from the top of the hoist.

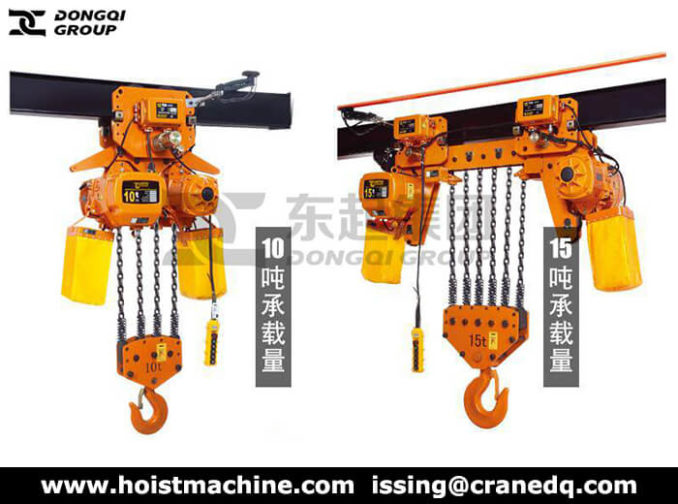

15 ton electric chain hoist with motorized trolley

15 ton electric chain hoist with motorized trolley

Electric Chain Hoist with Trolley Price:

Dongqi 15 ton chain hoist with electric trolley is kind of heavy duty lifting hoist, is widely used for lighting, loading, unloading heavy materials in warehouse, factory, logistics, building etc. As a leading electric hoists manufacturer in China, all hoisting products are designed and produced according to national standard. Welcome to contact us and get electric trolley hoist price now.

hoistmachine
,
Hoist Machine Blog
chain hoist for sale
9 Jan 0

5 Ton Single Phase Electric Chain Hoist for Sale

5 Ton Single Phase Electric Chain Hoist for Sale

Dongqi offer types of electric chain hoists, 1 phase electric chain hoists &3 phase electric chain hoists, and custom electric chain hoists to meet your needs. Check Dongqi 5 ton single phase electric chain hoist now.

chain hoist for sale

5 ton single phase electric chain hoist for sale

5 Ton Electric Chain Hoist

Dongqi electric chain hoists offer many different capacities and options for electric chain hoists. Electric chain lifting hoist is mainly consisted of motor, transmission mechanism and chain wheel, etc.

Dongqi electric chain hoist specification a light weight, compact style in capacities starting from 0.5 ton to 32 tons. Single formed metal body, reduced headroom, improved potency, easier maintenance, incomparable safety standards.

Main Parameters of Electric Chain Hoist

  • Product Type  DHT, WBH
  • Lifting Capacity: 0.5t~35t
  • Lifting Height : 3~50m
  • Working Class: M3,M4
  • Ambient Temperature: -25~40℃

Features of 5 Ton Chain Electric Lifting Hoist

  • The body of hoist and gearbox of trolley are made of high strength alloy steel.
  • The guide chain baffles and load wheel made of high quality steel as well as alloy steel.
  • The forged hook with safe latch and the carbureting chain is high strength grade.
  • The grade two gear drive equipped with limit load device and lift up or down with adjustable limit switch.
  • The electric lifting hoist adopts the high start torque columnar rotor motor and the trolleys adopt the brake motor.
  • The push button cord is with 24 voltage for safer handling.
  • Use the lubricated grease of long lifespan without leakage.
  • Low headroom, light weight, easy operation, safe and reliable.

Application of 5 Ton Electric Chain Hoist

  • Single phase electric chain hoist with 5 ton lifting capacity can also be configured with a weatherproofing option for the use of the hoist in an outdoor environment.
  • Electric chain hoist can also be configured with a spark resistant option or a stainless steel option for the use of the hoist in a food grade environment.

Get Your Custom 5 Ton Electric Chain Hoist

According to your electric chain hoist specifications, Dongqi will provide the custom made 5 ton electric chain hoist, neither 1 phase or 3 phase or other voltages, to meet your electric hoist requirements and your hoist purchasing budget.

Specifications Need to Get Custom Electric Chain Hoist

  • When selecting an electric chain lifting hoist you need to determine the following items:
  • The voltage or power supply (single phase or 3-phase hoist);
  • The capacity, lift (length of hoist chain );
  • The suspension (hook, geared trolley, motorized trolley);
  • The pendant control length (length of push button controller);
  • The duty cycle, hoist speed, trolley speed, and beam size.
hoistmachine
, ,
Hoist Machine Blog

Contact Us

Address: No.1, Weier Road, Henan (Changyuan) Crane Industry Park
Sales Tel: 0086-371-86687182
Fax: 0086-371-86687182
WhatsApp: 0086 150361 77583
E-mail: issing@cranedq.com

Proudly powered by WordPress | Theme: Bluestreet by Webriti
